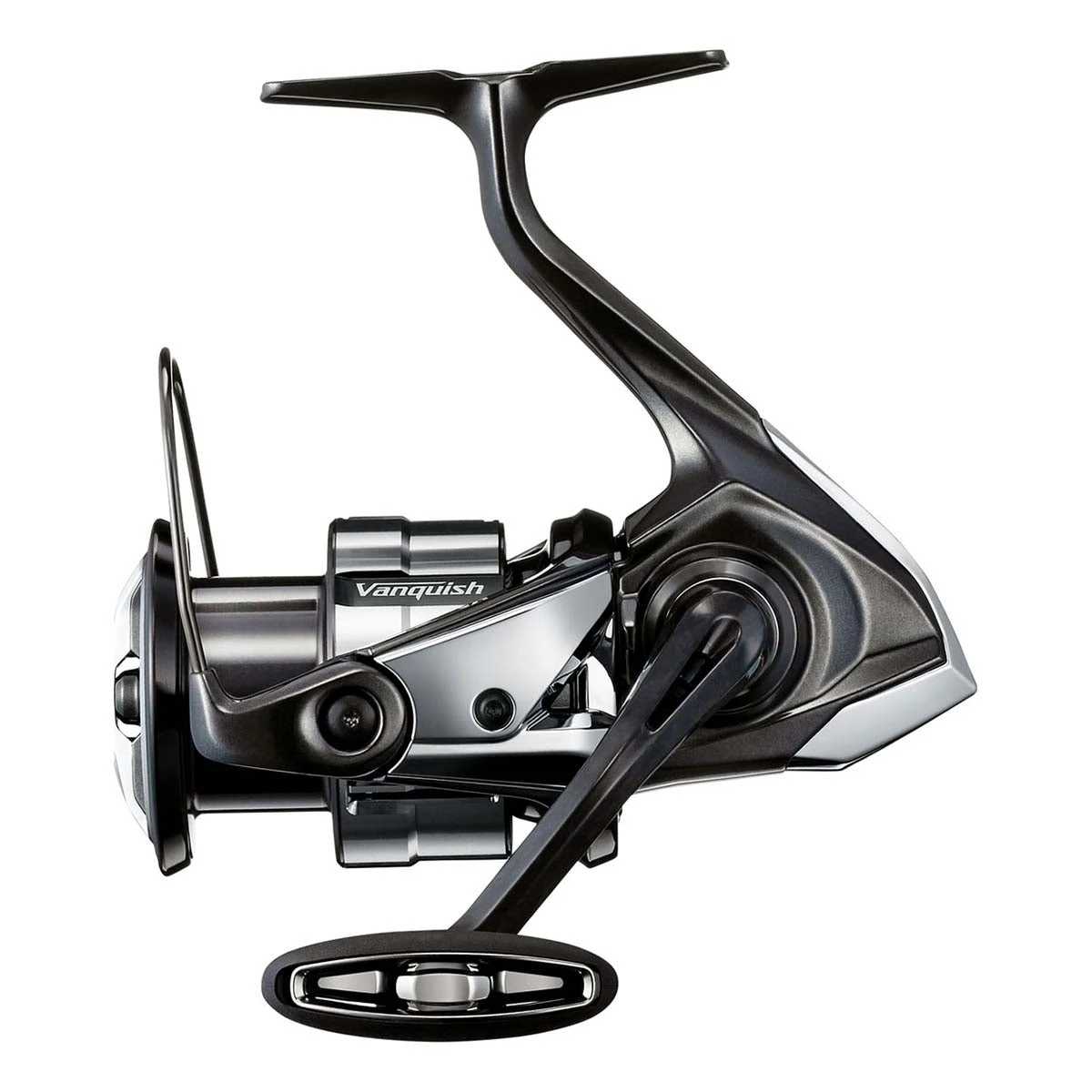

Shimano Vanquish FC Spinning Reel

Shimano Vanquish FC Spinning Reel

The Vanquish is the pinnacle of lightweight engineering for finesse anglers seeking the ultimate in performance. The responsiveness of the reel make it perfect for fishing ultra-light techniques covering predator and saltwater fishing styles.

The MGL Series focuses on remarkable lightweight rotation. The Vanquish is equipped with the lightest Magnumlite Rotor. Perfect balance, lightness and low inertia rotation, produces exceptional performance and awareness.

MAGNUMLITE ROTOR
The asymmetrical design profile of Magnumlite Rotor improves balance and control, resulting in a new dimension of lightweight rotation. The increased sensitivity transmits every slight change in line tension, resulting in advanced and enhanced rotational precision.

INFINITYLOOP
INFINITYLOOP produces a super-dense winding patterne. Advanced evolution of the internal gearing has generated an extremely slow spool oscillation when the reel is retrieving line. This precise winding pattern dramatically reduces line friction during the cast, delivering increased performance.

INFINITYXROSS
INFINITYXROSS is an advanced drive gear technology that distributes the load between the drive gear and pinion gear teeth over a wider area. The increased contact area across the full face of the teeth increases durability by approximately 2 times* compared to a conventional design.

INFINITYDRIVE
INFINITYDRIVE is an evolution of the X-SHIP system delivering light and powerful winding.
Sliding resistance has been greatly reduced by supporting the main shaft, which was previously supported by the pinion gear, with a special low-friction bush. The main shaft also has a special surface treatment which also reduces rotational torque. As a result, handle rotation resistance is reduced considerably, resulting in easier winding even under extreme pressure.

ANTI-TWISTFIN
An elastic fin is attached in the vicinity of the line roller. The pin prevents line on the spool from slacking and also prevents them from getting caught under the spool during retrives/cranks.

DURACROSS
A newly designed drag washer with a completely new material. The new material is layered onto the existing one in an orthogonal shape to improve the overall strength. The smoothness is kept the same while the anti-friction performance has been increased by more than 10 times* its preceding renditions.

VQC3000XGC

Bearings: 12
Gear ratio: 6.4:1
Line capacity: 230/6 yard/lb
Line retrieve: 94 cm
Max drag: 9.00 kg
Max drag lbs: 20 lbs
Spool capacity: 0.25/210 mm/m
Weight: 170.00 g

VQC3000MHGC

Bearings: 12
Gear ratio: 5.8:1
Line capacity: 155/6 yard/lb
Line retrieve: 86 cm
Max drag: 9.00 kg
Max drag lbs: 20 lbs
Spool capacity: 0.25/125 mm/m
Weight: 170.00 g

Code: VQ4000MHGC

Bearings: 12
Gear ratio: 5.7:1
Line capacity: 190/6 yard/lb
Line retrieve: 93 cm
Max drag: 11.00 kg
Max drag lbs: 24 lbs
Spool capacity: 0.30/120 mm/m
Weight: 205.00 g
